Control Systems

TAVSAN control systems offer practical solutions for various applications.

FORTICA Poultry House Control System

Screen: 10’’ LCD

Fan Control: 16 groups

Sensors:

• 4 internal temperature

• 1 external temperature

• 1 humidity

• 1 pressure

• 1 CO2 (optional)

• 1 NH3 (optional)

Controls:

• Monitoring water consumption with electronic water meter

• Curtain and fan control based on pressure

• Ped water pump control

• Fogging system control

• 4 heater controls

• Silo weighing (optional)

• Animal weighing (optional)

• Lighting and 0-10 volt dimmer control

• Livestock weighing control optional

• Lighting control and 0-10 volt

• Computer connection (Communication) remote control and reporting

• Remote access applications with smartphones

• Entering temperature and livestock weight values according to the schedule, automatic calculation of the air given in m3 inside inhaled air.

• Minimum ventilation feature by calculating the amount of air entering the poultry house in m3 depending on the selected group, specified working and stopping time or number of livestock, livestock weight, and coefficient calculation based on external temperature.

Connections: Computer connection, remote control and reporting, smartphone applications

Features: Entering temperature and livestock weight values according to the schedule, minimum ventilation calculations

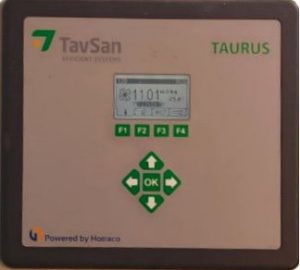

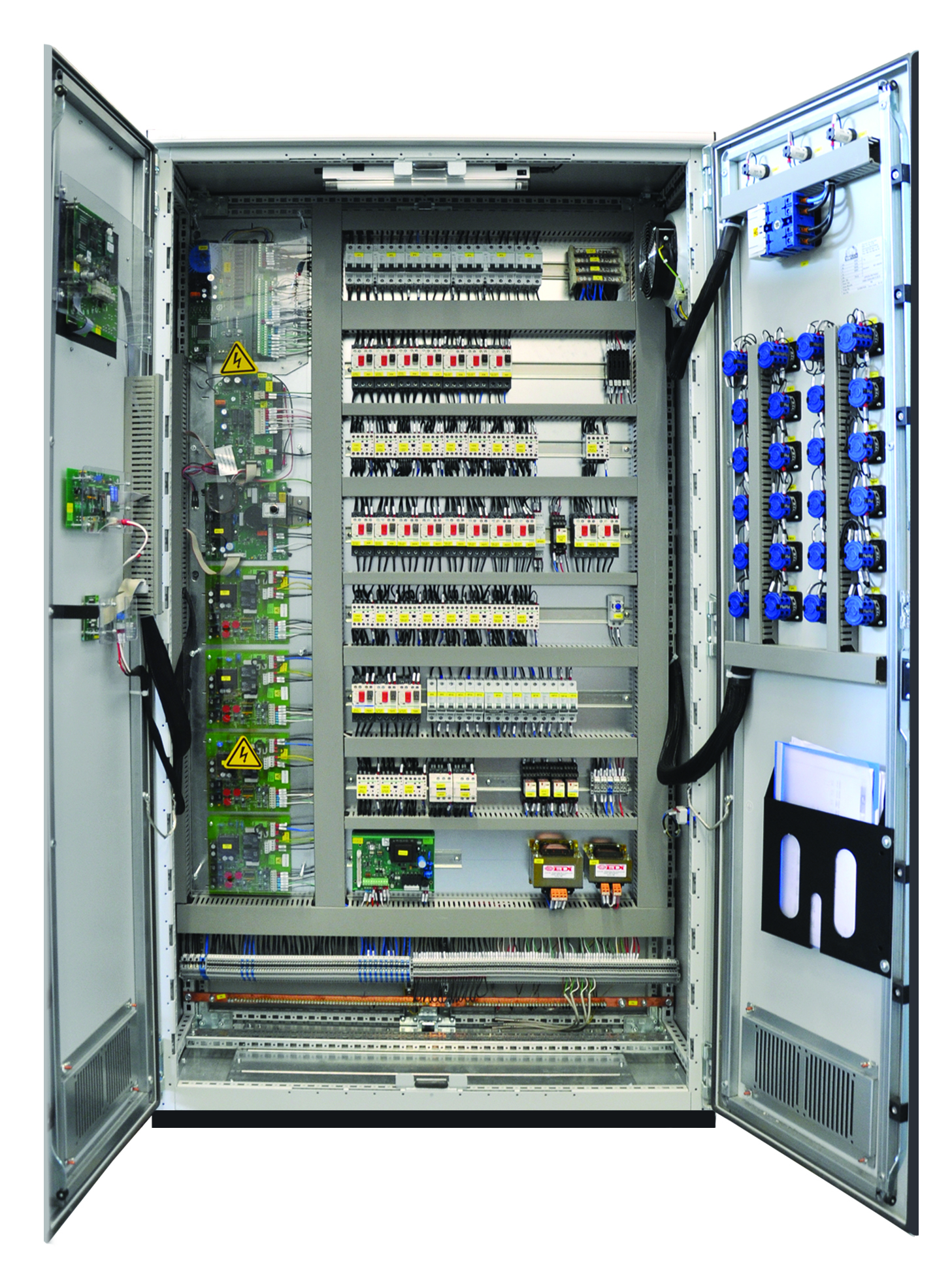

TAURUS Chicken Coop Control System

Controlled:

•Tunnel Fan

•Minimum Fan

•Damper

•Heating

•Cooling Pads

•Tunnel Damper

•Lighting

•Water Meter

Alarm:

•Minimum / Maximum temperature

•Minimum / Maximum pressure

•Maximum humidity

•Power outage

•High voltage

•Alarm memory

•All motors can be manually controlled on/off and via automatic control switches.

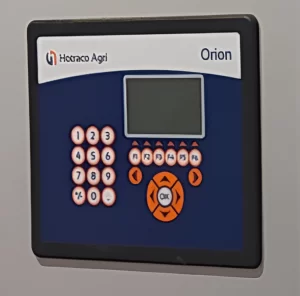

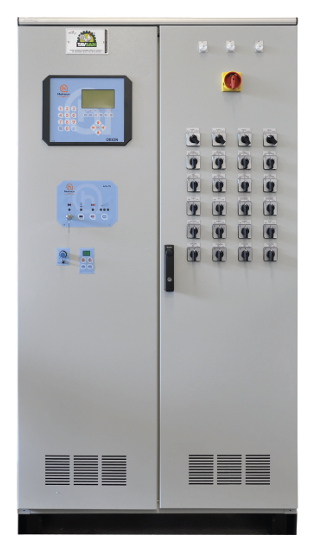

ORION Poultry Control System

Screen: 7’’ LCD

Fan Control: 16 groups

Sensors:

• 4 internal temperature

• 1 external temperature

• 1 humidity

• 1 pressure

• 1 CO2 (optional)

Controls:

• Monitoring water consumption

• Control of curtains and flaps based on pressure

• Control of foot pump

• 3 heater controls

• Feed weighing with electronic scale

• Lighting and 0-10 volt dimmer control

Connections: Computer connection, remote control and reporting, smartphone applications

Features: Input of temperature and live weight values according to the calendar, minimum ventilation calculations

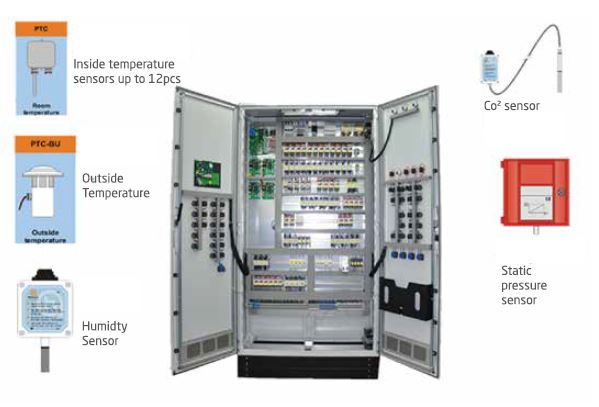

Some features of processors that provide simple and fully automatic control in control panels
  1. Internal temperature sensor
  2. External temperature sensor
  3. Humidity sensor
  4. Static pressure sensor
  5. CO2 sensor
  6. Heating output
  7. Cooling pet output
  8. Fan operation based on time or live weight
  9. Operating flap and pad covers based on static pressure
  10. Silo weighing
  11. Feed weighing, sending the desired amount of feed to the desired storage
  12. Live weighing
  13. Water consumption information
  14. Lighting control
  15. Ability to establish a computer connection
  16. High-quality panels with processors that can receive control and alarm information with mobile phones
  17. Engines that can also be controlled manually
  18. Alarm systems that provide high-level security under all conditions

Poultry Communication Systems
